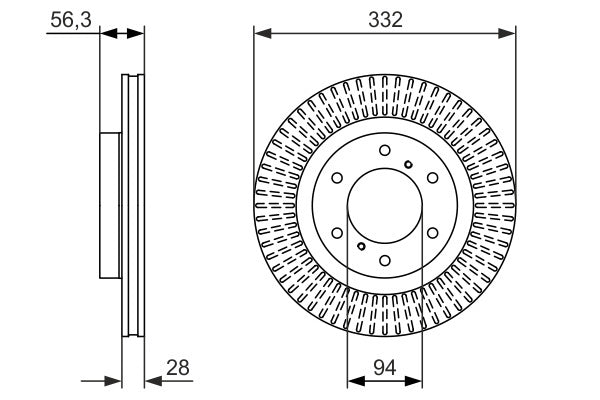

Height (unpacked)= 56.2 mm
Diameter (unpacked)= 332 mm
Number of holes= 6
Hub diameter= 94 mm
Maximum thickness= 28 mm
Minimum brake disc thickness= 26 mm
Coating (oiled)
Disc thickness variation (DTV)= 15 µm
Lateral runout= 50 µm
Pitch circle diameter= 139.7 mm
Brake disc version (ventilated)
Maximum mounting hole diameter= 12.6 mm
