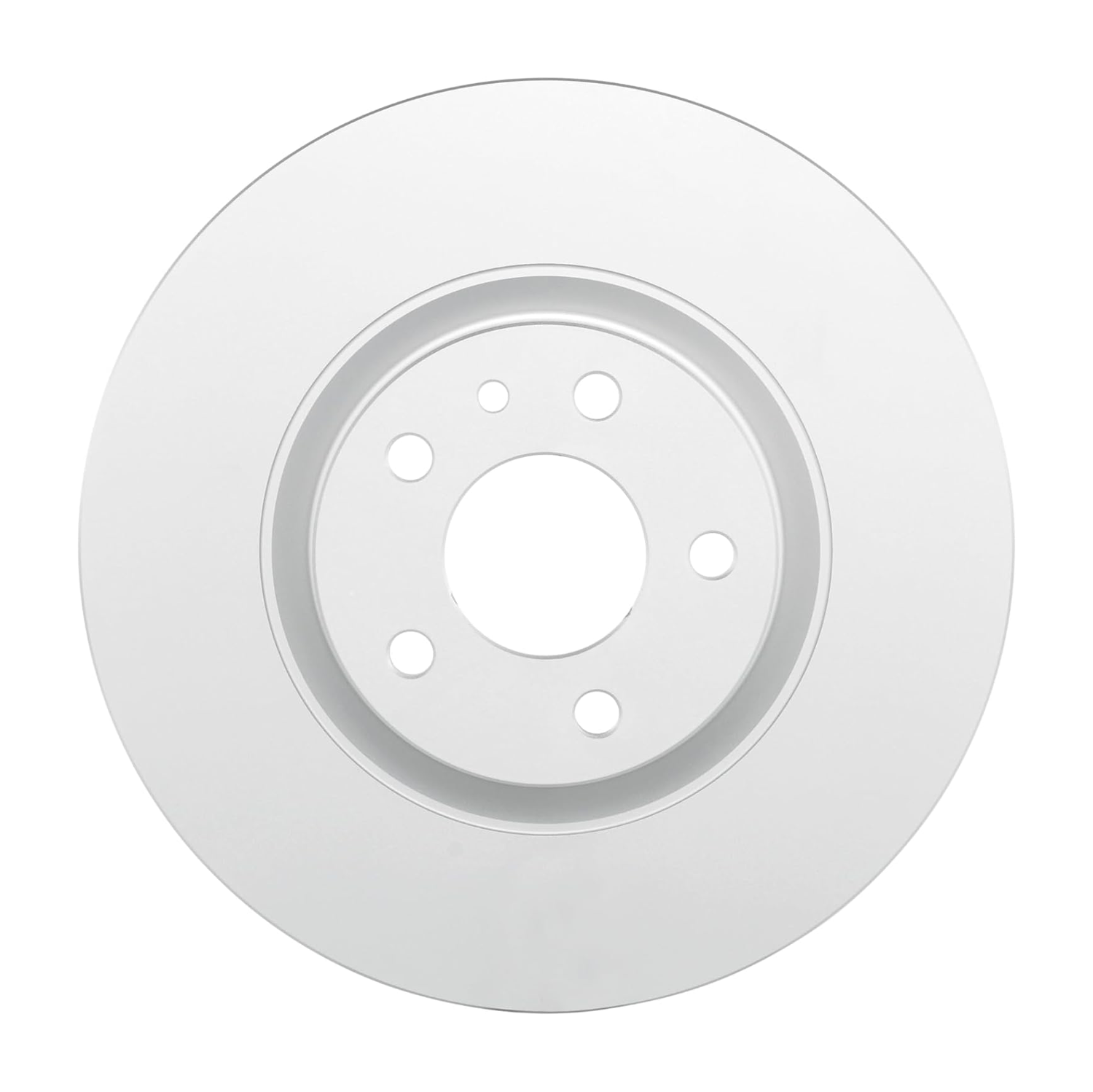

Bosch Front Brake Disc 0986478521 - Fiat - 1 Pc

BOSCH Front Brake Disc Fiat Tipo - Doblo

*This brake disc part number represents one piece only. In order to buy a set of brake discs (right and left sides), you need to buy 2 pieces

Height (unpacked)= 43.4 mm
Diameter (unpacked)= 283.9 mm
Number of holes= 5
Hub diameter= 59 mm
Maximum thickness= 22 mm
Minimum brake disc thickness= 20.2 mm
Coating (Alutherm)
Disc thickness variation (DTV)= 10 µm
Lateral runout= 50 µm
Pitch circle diameter= 98 mm
Contains screws (Yes)
Brake disc version (ventilated)
Maximum mounting hole diameter= 13 mm
