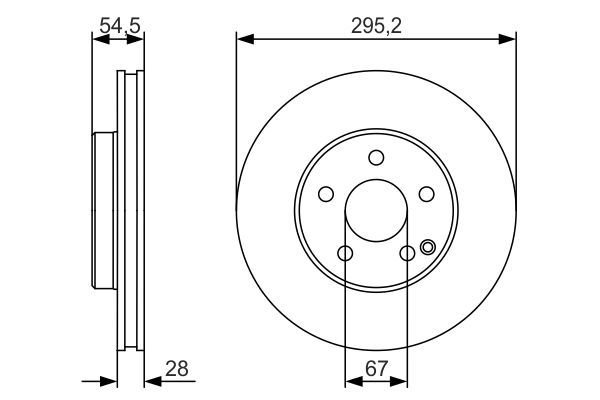

Height (unpacked)= 54.5 mm
Diameter (unpacked)= 295 mm
Number of holes= 5
Hub diameter= 67 mm
Maximum thickness= 28 mm
Minimum brake disc thickness= 25.4 mm
Coating (oiled)
Disc thickness variation (DTV)= 15 µm
Lateral runout= 50 µm
Pitch circle diameter= 112 mm
Brake disc version (ventilated)
Maximum mounting hole diameter= 15.3 mm
