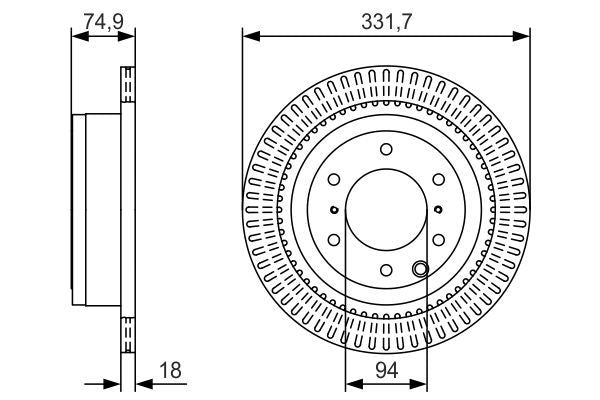

Height (unpacked)= 74.4 mm
Diameter (unpacked)= 331.7 mm
Number of holes= 6
Hub diameter= 94 mm
Maximum thickness= 18 mm
Minimum brake disc thickness= 16 mm
Coating (oiled)
Disc thickness variation (DTV)= 12.7 µm
Lateral runout= 50 µm
Pitch circle diameter= 139.7 mm
Brake disc version (ventilated)
Maximum mounting hole diameter= 12.7 mm
