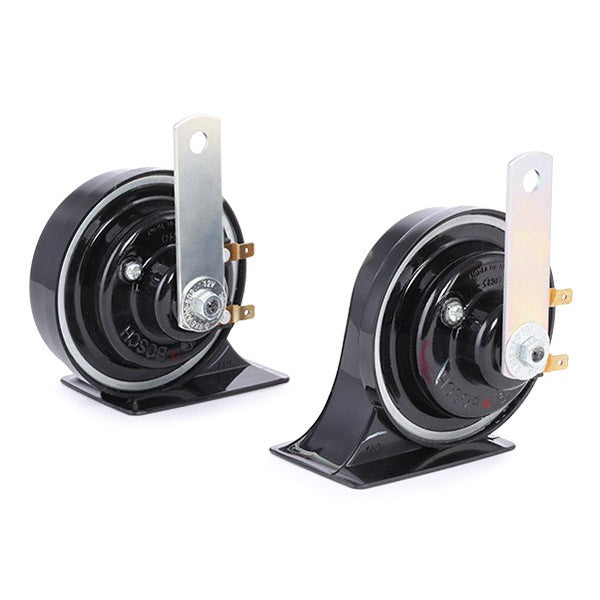

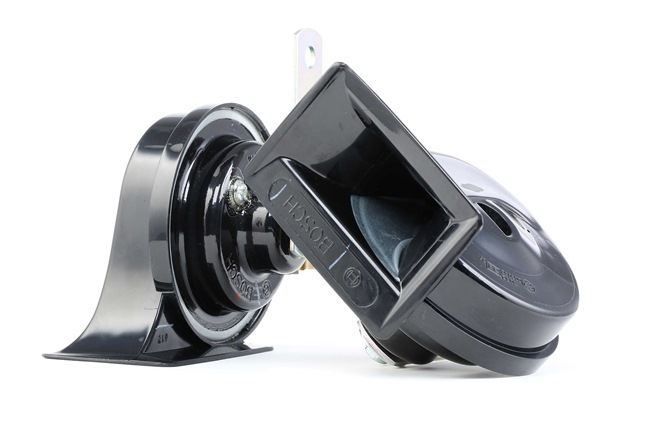

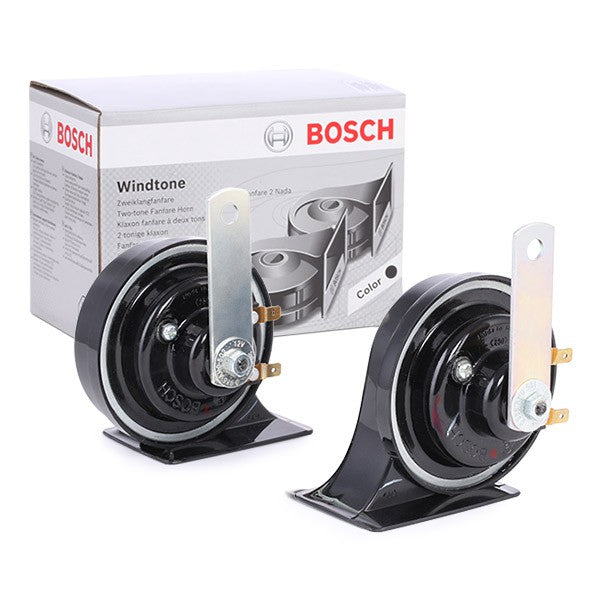

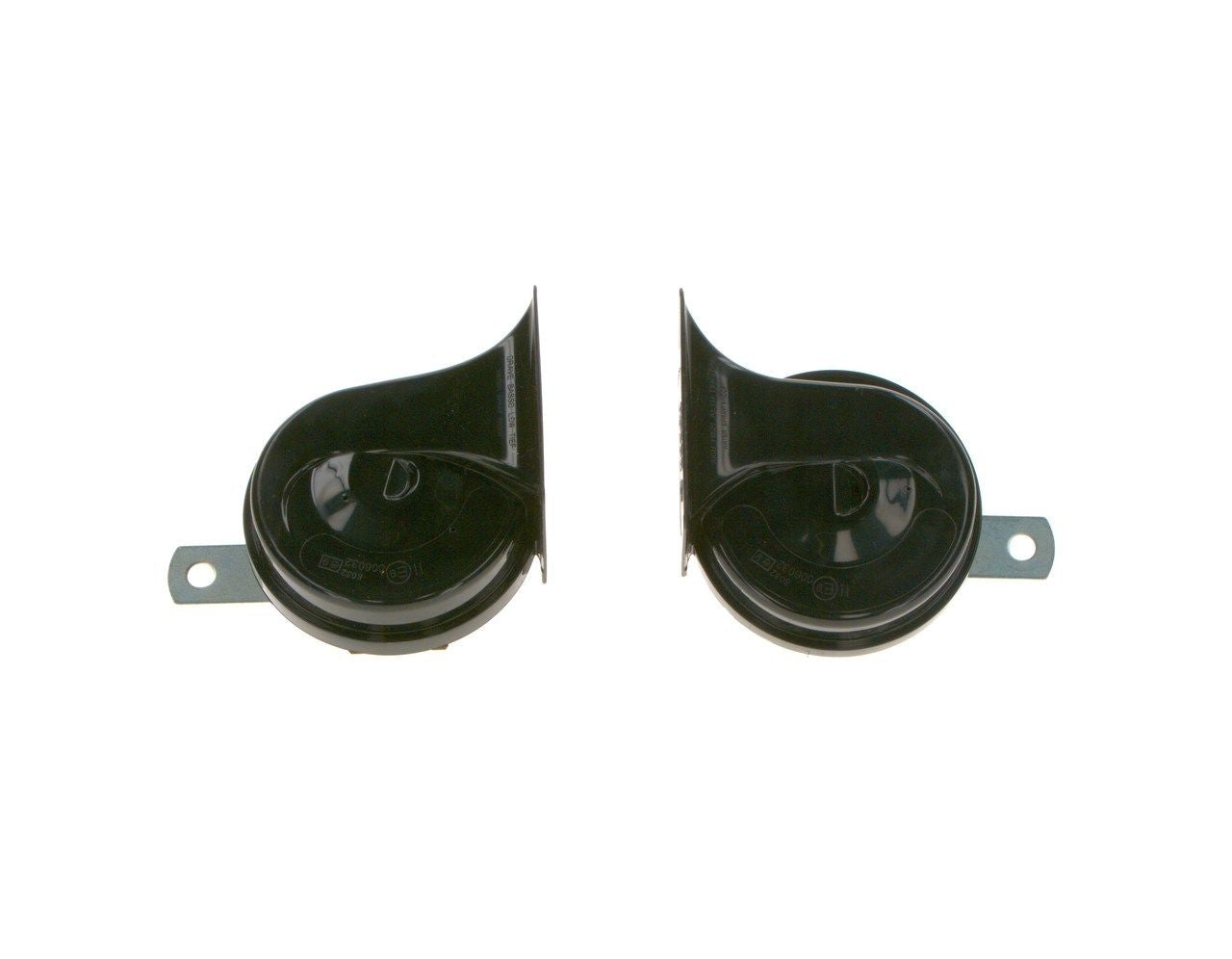

Bosch Windtone Fanfare Horn Set 0986AH0503

Trumpet Horn Operating Mode: Electric-pneumatic

Rated Voltage [V]: 12

Power Consumption [W]: 60

Rated current [A]: 4.5

Frequency Range [Hz]: 420

Frequency Range [Hz]: 500

Sound Level [dB(A)]: 110

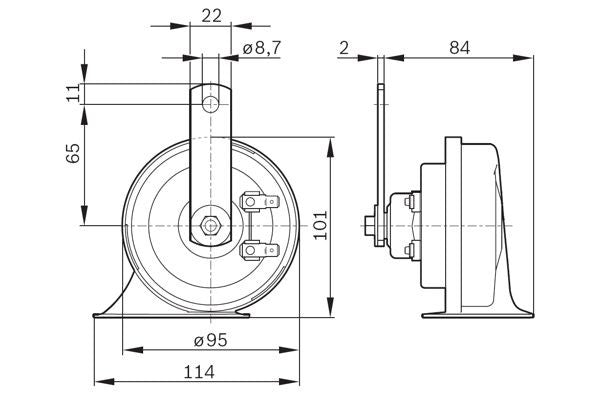

 Width [mm]: 57 Length [mm]: 92

Bore Diameter [mm]: 8.7

Height [mm]: 123.6 Number of connectors: 2

Holder May Need Adaptation
Connector May Need Adjustment
